Description

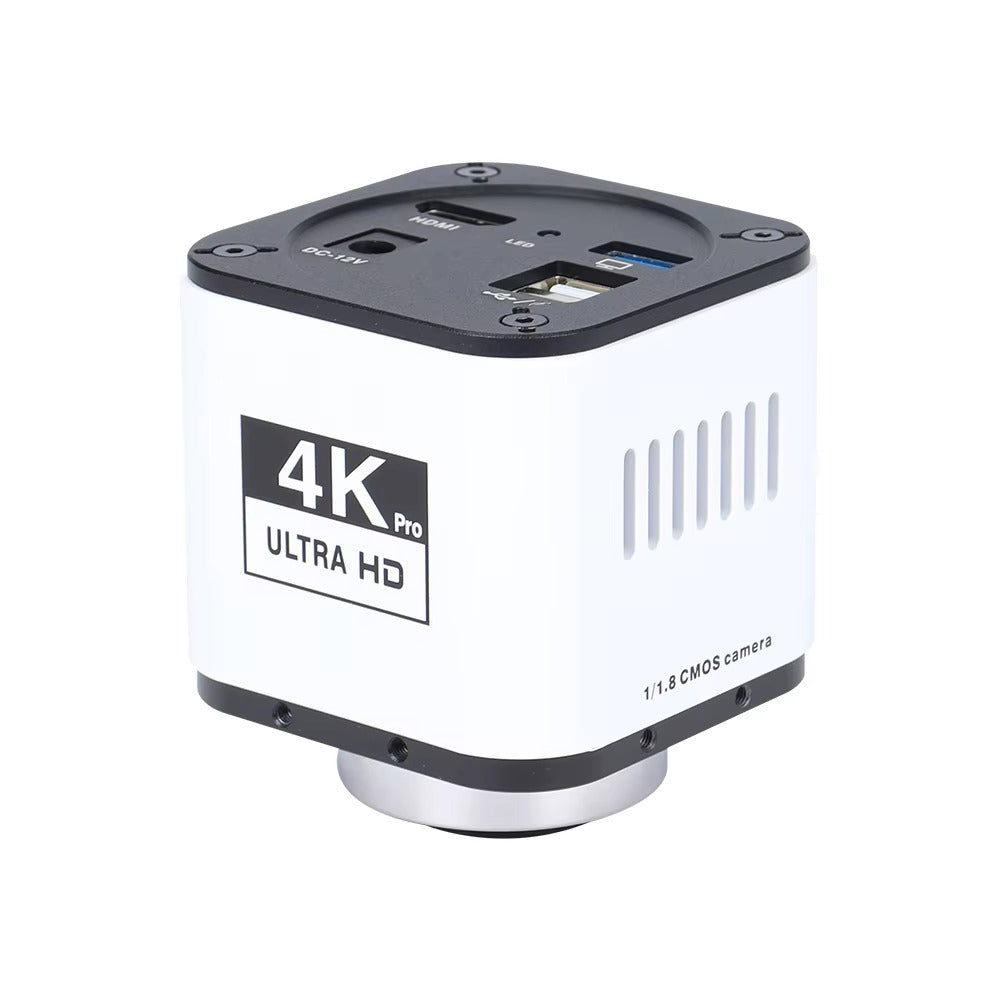

The industrial USB microscope camera is a professional grade 4K CMOS microscope camera designed for precision inspection and analysis. Featuring advanced auto edge detection technology, it ensures crisp, detailed imaging for accurate measurements and clear visualization of fine details. Its USB and HDMI connectivity provides seamless plug-and-play operation with PCs and laptops, making it ideal for electronic component inspection, circuit board analysis, scientific research, and quality control applications. With ultra-high-definition 4K resolution and reliable performance, this camera delivers sharp, real-time images to meet the demands of industrial and laboratory environments.
USB Industrial Microscope Camera Technical Parameters
| Sensor | 1/1.8 inch CMOS Sensor SONY-IMX678 |
| Resolution | 3840*2160P@30FPS |

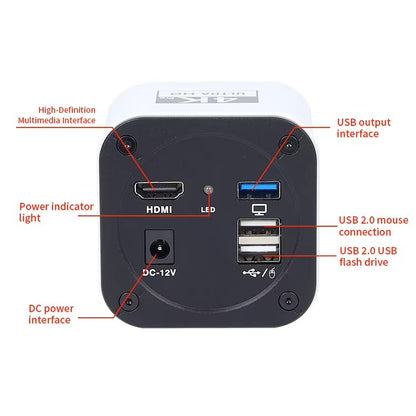

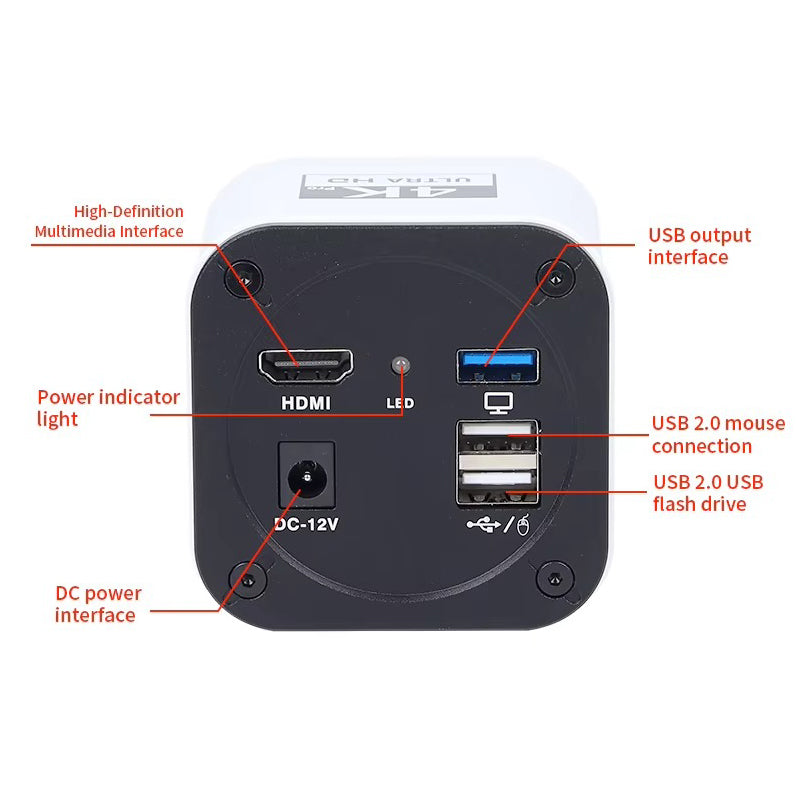

| Output Interface | HDMI + UVC-USB3.0 High-Speed Output |

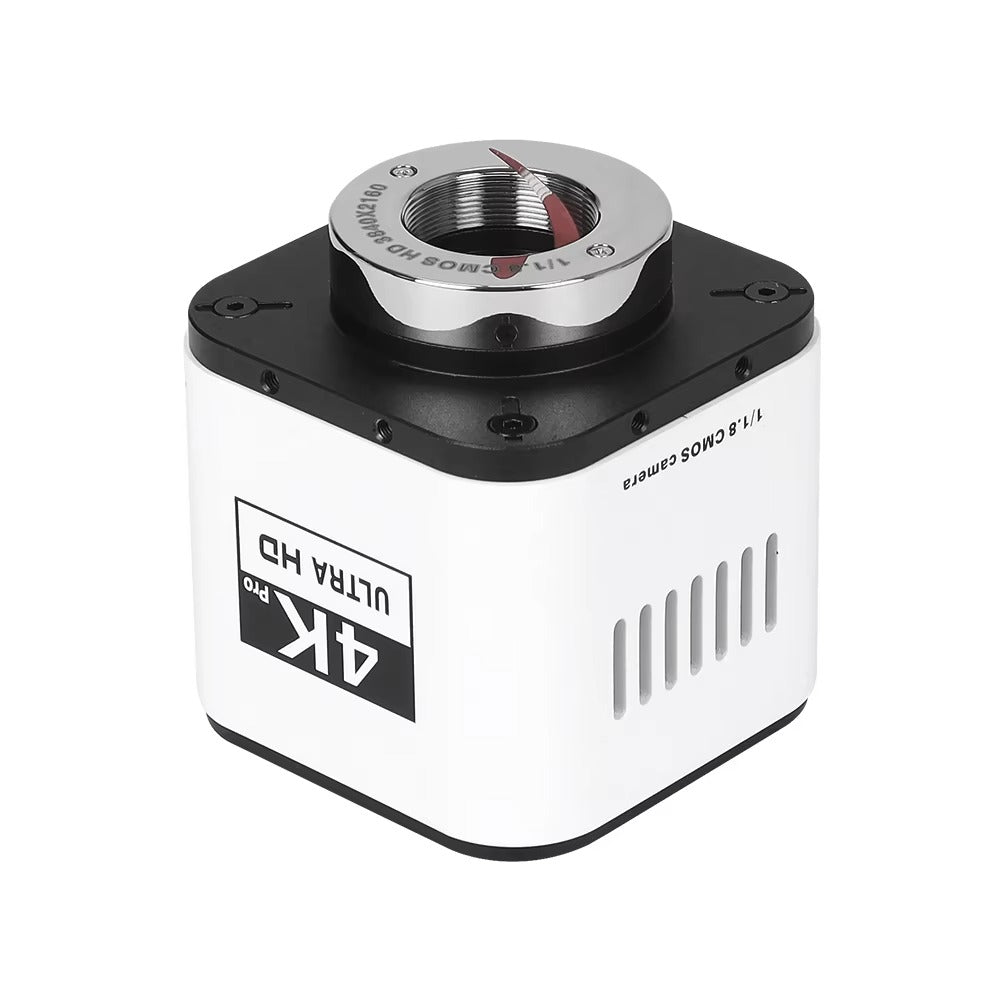

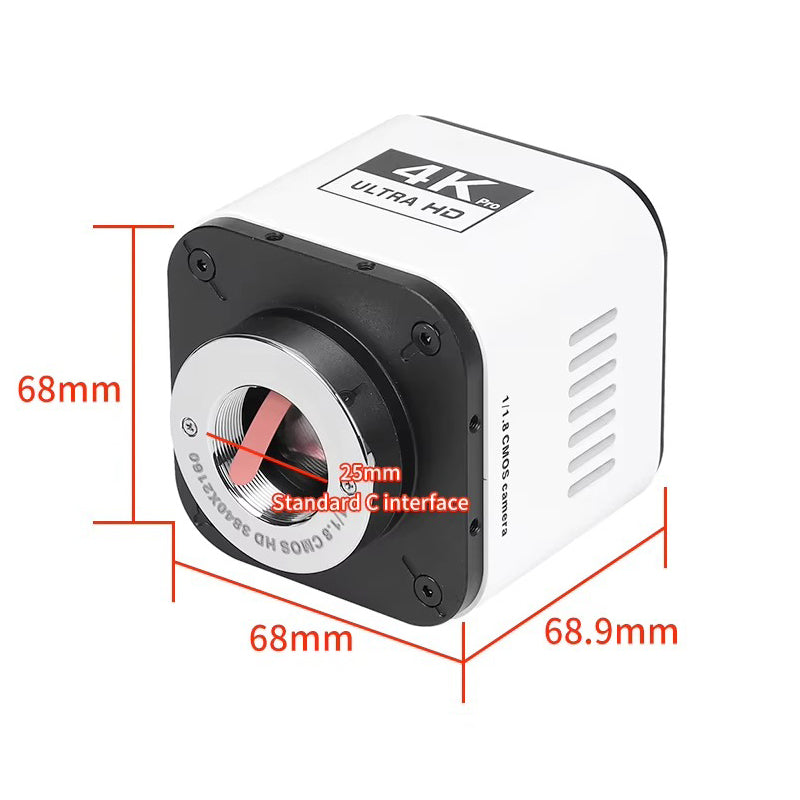

| Lens Interface | C Mount |
| Power Supply | DC 12V |
| Pixel Size | 2.0μm*2.0μm |
| External Devices | HD Monitor + Computer |
| Storage Method | Supports USB flash drive storage |
| Basic Functions | Photo Capture, Video Recording, Measurement, Storage |
| Measurement Function | Point Spacing, Point Line Spacing, Line Spacing, Angle, Radian, Parallel Lines, Circle, Circle Center Spacing, Point Center Spacing, Line Center Spacing, Rectangle and more |
| Grid Lines | Horizontal lines, vertical lines, and center scale lines can be customized in terms of color and thickness. |
| Camera Features | Auto Edge Detection, Photo, Video, Image Preview, Digital Zoom In/Out, Freeze, Deglossing, Exposure, White Balance, Measurement, Magnification Display |
| Menu Language | Simplified Chinese, Traditional Chinese, English |
Functions of Industrial Microscope Camera
-
Precision Measurement
Enables accurate dimensional measurement of microscopic objects, supporting professional inspection and analysis in industrial and research environments. -
Anti-Reflection Illumination
Equipped with advanced lighting technology that minimizes glare and reflection, ensuring clear observation of highly reflective surfaces. -
Image Capture and Video Recording
Allows users to easily capture high-quality images and record real-time videos for documentation, comparison, and reporting purposes. -
High-Definition Imaging
Delivers crisp, detailed images with superior color accuracy and contrast, ideal for precision inspection and fine structure observation. -
HDMI + UVC Simultaneous Output
Supports dual output via HDMI and UVC, enabling real-time display on monitors while connecting to computers for image processing or live streaming. -
Mouse Control Operation
Offers intuitive on-screen control using a USB mouse, allowing easy navigation, measurement, and image adjustments without a connected computer. -
USB Flash Drive Storage
Supports direct photo and video storage to a USB flash drive, ensuring convenient data management and portability. -
Split-Screen Display
Provides dual-view or comparison modes for analyzing two samples simultaneously, improving efficiency in inspection and quality evaluation.

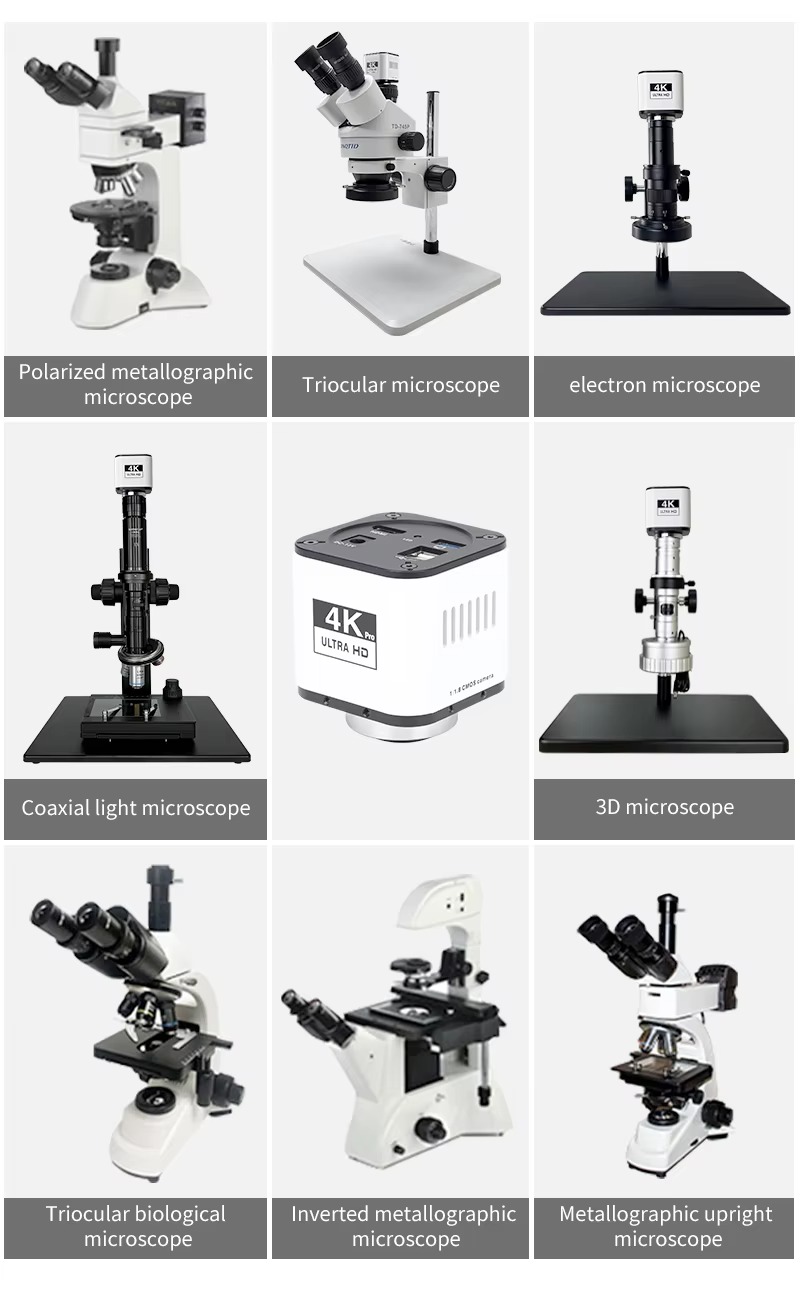

Applications of a 4K Industrial Microscope Camera
- Electronics manufacturing – PCB inspection, solder joint analysis, and microchip examination
- Semiconductor industry – wafer inspection and microstructure observation
- Industrial quality control – defect detection, component measurement, and surface analysis
- Research laboratories – material analysis and biological sample observation
- Educational institutions – scientific training, demonstrations, and visual documentation
- Metallurgy – weld inspection, grain structure study, and failure analysis
- Jewelry and watchmaking – gemstone grading and fine mechanical inspection
- Forensic analysis – document examination and trace evidence observation
- 3D printing & precision engineering – layer inspection and prototype analysis
