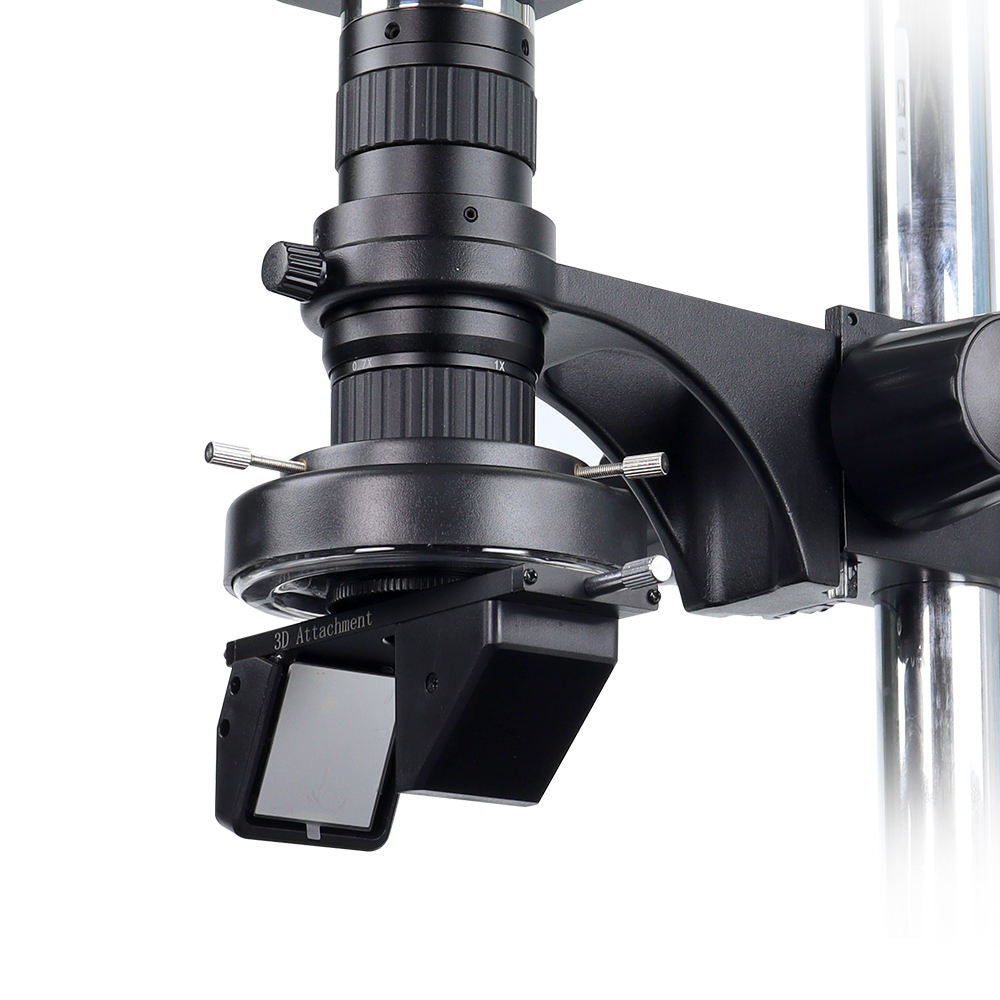

  • Microscope Lens with 3D Attachment and Led Light

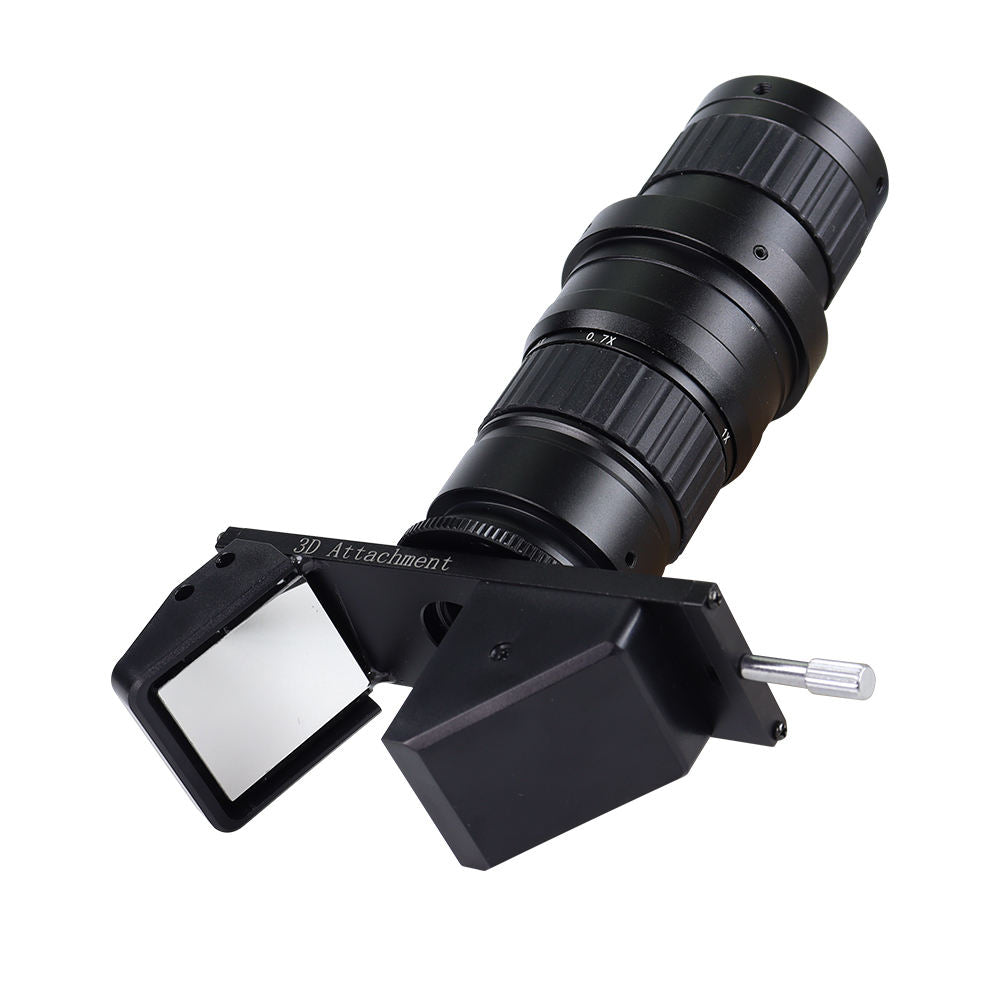

  • Microscope 3D Attachment

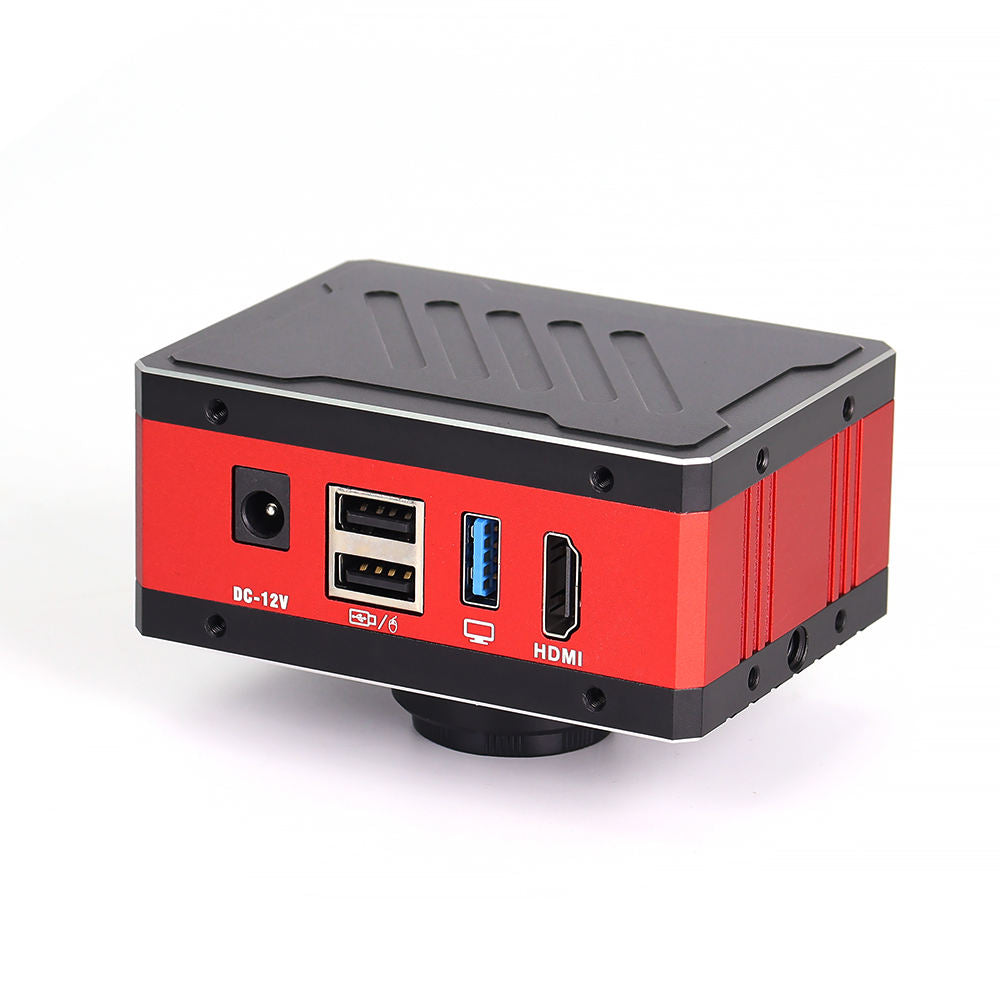

  • 4K Digital Microscope with HDMI USB

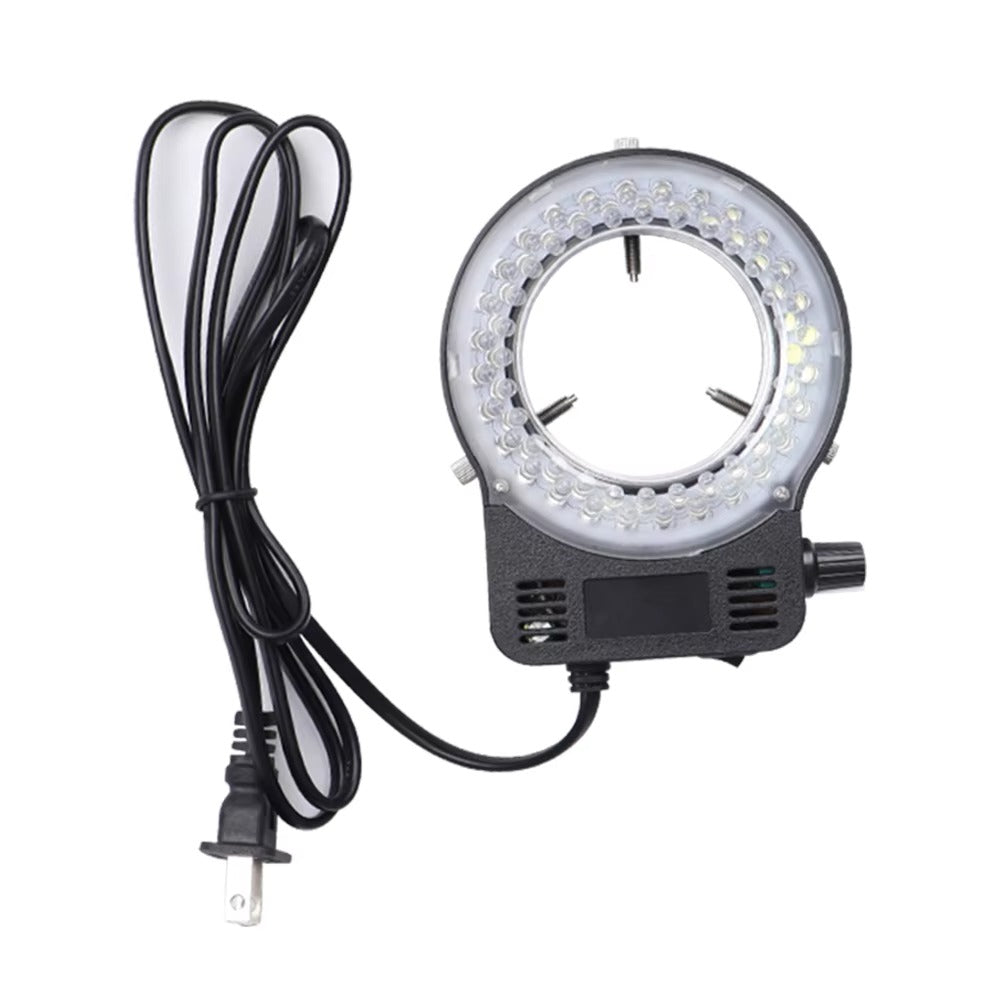

  • 56 LED Microscope Ring Light Source Black
1 5

Linfine Microscope

4K 3D Digital Microscope with Screen USB HDMI for PCB Inspection

4K 3D Digital Microscope with Screen USB HDMI for PCB Inspection

How to Order

To place an order, simply fill out our contact form with your product requirements. Our sales team will reach out to discuss details and provide a quotation. Once terms are confirmed, you can proceed with the purchase.

Price Policy

All prices shown on our website are for reference only and not the final selling prices. Actual prices may vary depending on your specific requirements, such as product specifications, quantity, and customization. Please contact us directly to receive an accurate quotation based on your needs.

Shipping Policy

We accept international orders and typically ship within 72 hours after order confirmation. Delivery time may vary depending on the buyer’s location and the agreed shipping method. Please note that buyers are responsible for any customs clearance fees or import duties that may apply.

View full details

Description

This 3D digital microscope offers an immersive viewing experience with its 4K ultra-high-definition imaging and stereo depth perception, delivering precise visualization of fine details. Designed with USB and HDMI outputs, it supports real-time display and data transfer to an external monitor or computer, making it ideal for inspection, documentation, and analysis. The advanced optical system ensures accurate color reproduction and sharp clarity, while the flexible design allows comfortable viewing from multiple angles. Perfect for electronics repair, industrial inspection, precision assembly, and educational demonstrations, this 3D digital microscope combines performance, convenience, and professional-grade imaging in one device.

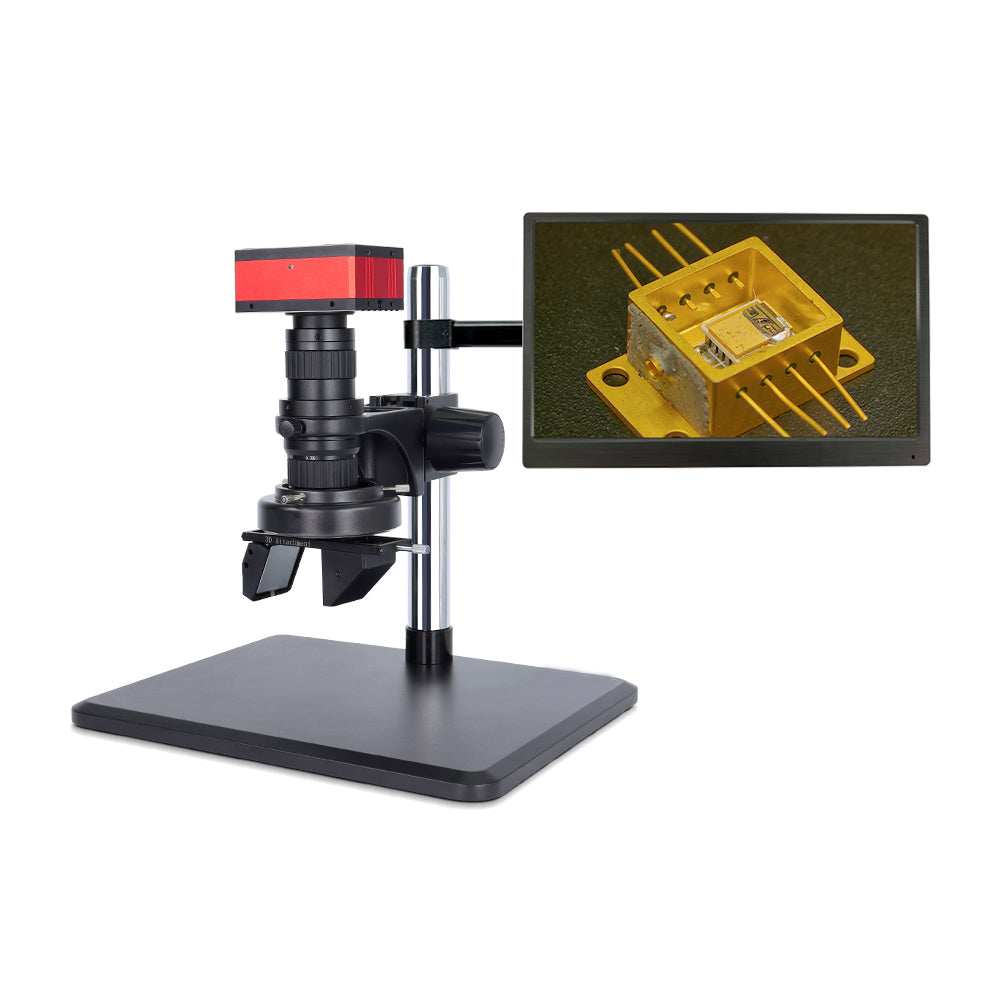

3D Digital Microscope with Screen

Specification of 3D Digital Microscope

Optical Magnification 0.7x – 4.5x continuous zoom
Digital Magnification 26x – 180x
Sensor 1/1.8 Inch
Resolution 3840*2160P@60FPS
Pixel Size 2.0μm*2.0μm
Output Interface HDMI + USB 2.0 + USB 3.0
Lens Interface C Mount
Power Supply DC 12V
External Devices HD Monitor + Computer
Storage Method External storage
Basic Functions Photo Capture, Video Recording, Measurement
Image Adjustment Color, Color Temperature, White Balance, Exposure
Camera Features Horizontal/vertical mirroring, freezing, computer software measurement, digital zoom in/out, auto exposure, auto white balance, grid lines, etc.
Illumination Method 56 LEDs ring light illumination
Menu Language Simplified Chinese, Traditional Chinese, English

Applications of 3D Digital Microscope

  • Electronics and PCB Inspection – Examining solder joints, microcircuits, and component placement with 3D visualization.
  • Semiconductor Industry – Inspecting wafers, bonding wires, and microstructures with depth accuracy.
  • Industrial Quality Control – Detecting surface defects, cracks, and dimensional deviations in manufactured parts.
  • Metallurgical Analysis – Observing grain structures, weld joints, and material fractures.
  • Precision Engineering – Inspecting fine mechanical components and assemblies for accuracy.
  • Medical Device Inspection – Ensuring quality and cleanliness of surgical instruments and medical components.
  • Educational and Research Institutions – Demonstrating microscopic 3D structures for scientific study and training.
  • Jewelry and Watchmaking – Evaluating craftsmanship, engravings, and gemstone quality.
  • Forensic Science – Analyzing trace evidence, tool marks, and document authenticity.
  • 3D Printing and Prototyping – Checking surface finish and structural integrity of printed models.
